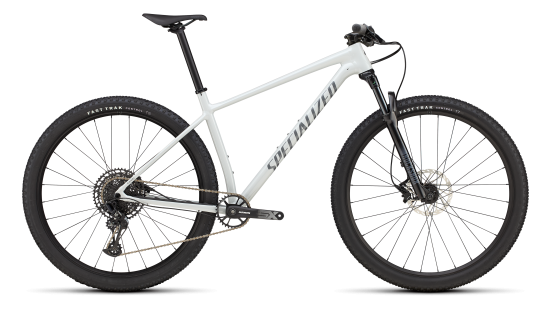

The Specialized CHISEL HT is engineered for maximum efficiency and speed on modern cross-country trails and race courses. Designed as an alloy counterpart to the high-performance Epic Hardtail, it brings professional-level performance to a more accessible price point. Built with D'Aluisio Smartweld Technology, this bike features an advanced hydroformed aluminum frame that optimizes weight, stiffness, and compliance, making it one of the lightest alloy hardtail frames at just 1,350g.
The Chisel HT is packed with cutting-edge XC features, including Progressive XC Geometry with a 68-degree headtube angle, extended reach for increased control, and Boost spacing for enhanced wheel stiffness. It also supports internal cable routing, a 30.9mm dropper post, and a 1x drivetrain-only design.
At its core, the Chisel is built for speed and efficiency. The size-tuned stiffness of the frame ensures that every rider, regardless of bike size, experiences optimized power transfer and control. The threaded bottom bracket enhances durability, while the SRAM SX Eagle 1x12-speed drivetrain delivers crisp and precise shifting. The RockShox Judy Silver fork with 100mm travel ensures smooth performance on technical terrain, complemented by 27mm internal width alloy wheels wrapped in 2.35” Fast Track Control casing tires for exceptional grip and speed.
Why choose this bike?
✅ Ultra-lightweight frame – just 1,350g thanks to D’Aluisio Smartweld Technology.
✅ Progressive XC Geometry – 68-degree headtube angle for stability and control.
✅ RockShox Judy Silver fork – 100mm travel for enhanced trail compliance.
✅ SRAM SX Eagle 1x12 drivetrain – efficient and reliable performance.
✅ Internal cable routing & boost spacing – clean aesthetics and increased wheel stiffness.
Key Features
Frame: D’Aluisio Smartweld hydroformed aluminum, 1,350g, Progressive XC Geometry
Fork: RockShox Judy Silver, 100mm travel
Drivetrain: SRAM SX Eagle 1x12-speed
Brakes: SRAM Level T hydraulic disc brakes
Wheels: 27mm internal width alloy rims with 2.35” Fast Track Control casing tires
Bottom Bracket: Threaded for increased durability
Dropper Post Compatibility: 30.9mm ready
Who is this bike for?
The Specialized CHISEL HT 2025 is perfect for XC racers and competitive trail riders looking for a lightweight, high-performance hardtail that delivers the speed and agility of a pro-level bike in a more budget-friendly package. Its advanced frame technology, modern geometry, and top-tier components make it a leading choice for those who want race-ready performance without compromising on strength and durability.
Brand |
Specialized
|
Frameset/Frame |
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
|
Wheels/Spokes |
Stainless, 14g
|
Wheels/Rims |
Specialized 29, 27mm inner width, 28h, tubeless ready
|
Wheels/Rear tire |
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
|
Wheels/Rear hub |
Alloy rear hub, sealed cartridge bearings, 12x148mm thru-axle, 6-bolt, 28h
|
Wheels/Inner tubes |
Standard 40mm PV 29x1.75-2.4
|
Wheels/Front tire |
Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
|
Wheels/Front hub |
Alloy front hub, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
|
Suspension/Fork |
RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
|
Frameset/Seat binder |
Specialized Alloy, 34.9mm
|
Drivertain/Shift levers |
SRAM SX Eagle, trigger, 12-speed
|
Drivertain/Rear derailleur |
SRAM NX Eagle, 12-speed
|
Drivertain/Crankset |
SRAM SX Eagle, Powerspline
|
Drivertain/Chainrings |
32t
|
Drivertain/Chain |
SRAM, SX Eagle, 12-speed
|
Drivertain/Cassette |
SRAM PG-1210 Eagle, 11-50t
|
Cockpit/Stem |
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
|
Cockpit/Seatpost |
Alloy, 2-bolt clamp, 30.9mm
|
Cockpit/Saddle |
Body Geometry Power Sport, steel rails
|
Cockpit/Handlebars |
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
|
Cockpit/Grips |
Specialized Trail Grips
|
Brakes/Rear brake |
SRAM Level T hydraulic disc, 2-Piston Caliper
|
Brakes/Front brake |
SRAM Level T hydraulic disc, 2-Piston Caliper
|
