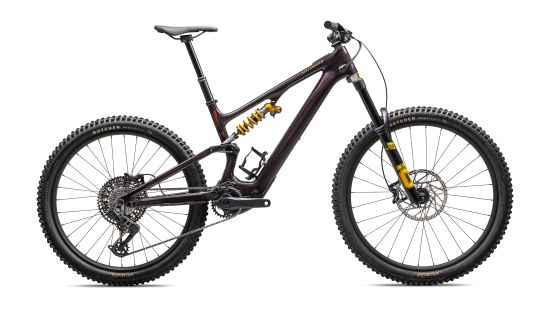

E-bike Specialized LEVO SL ÖHLINS COIL.
The Specialized Levo SL Öhlins Coil takes the acclaimed Levo SL platform and upgrades it with premium coil suspension, delivering a new level of plushness and control for riders who want to dominate technical terrain. Combined with the lightweight carbon frame and whisper-quiet SL 1.2 motor, this bike offers an unparalleled trail experience.
Key Features
✅ Lightweight Carbon Frame: Built for responsiveness, durability, and efficiency.
✅ Öhlins Coil Suspension: Top-tier coil shock delivers a plush, controlled ride over the roughest trails.
✅ SL 1.2 Motor: Smooth, quiet power with 43% more torque and 33% more power than its predecessor.
✅ 320Wh Integrated Battery: Provides up to 5 hours of ride time, with an optional 160Wh Range Extender available.
✅ Mixed-Wheel Setup: 29” front wheel for stability, 27.5” rear wheel for agility, with optional full 29” conversion.
✅ Adjustable Geometry: Fine-tune head tube angle and bottom bracket height for the perfect setup.
✅ MasterMind Turbo Control Unit: Full integration with the Specialized app, real-time MicroTune adjustments.
✅ SRAM GX Eagle Transmission: Reliable and smooth shifting in all conditions.
✅ SRAM Code Stealth Silver Brakes: Powerful, consistent stopping power.
Component Summary
Frame: High-performance carbon with mixed-wheel configuration
Motor: Specialized SL 1.2, delivering smooth and efficient power
Battery: 320Wh integrated battery, expandable with a 160Wh Range Extender
Suspension: Öhlins coil shock for superior small bump compliance and big hit control
Wheels: Mixed configuration—29” front, 27.5” rear—convertible to full 29”
Drivetrain: SRAM GX Eagle for precise and reliable shifting
Brakes: SRAM Code Stealth Silver hydraulic brakes for strong, consistent braking performance
Advanced Technologies
SL 1.2 Motor: Enhanced torque and efficiency deliver a natural, powerful pedal-assist experience.
MasterMind TCU: Centralized control unit offering real-time power adjustments and full app integration.
Adjustable Geometry: Tailor the head tube angle and bottom bracket height for optimal handling on technical trails.
Turbo Operating System: Seamless integration of motor and battery for maximum performance, range, and reliability.
Range Extender Ready: Add a 160Wh extender to boost your range by 50%.
Specialized App: Customize motor characteristics, manage battery life, and protect your investment.
Who’s It For?
The Levo SL Öhlins Coil is designed for riders who demand plush suspension performance without compromising on weight or efficiency. If you’re tackling challenging descents, technical climbs, or simply exploring new trails, this bike offers the control, comfort, and power to conquer anything in your path.
Brand |
Specialized
|
Accessories/Pedals |
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
|
Frameset/Frame |
All new Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
|
Wheels/Rear wheel |
WH-TRAVERSE HD ALLOY 370 29 27.5 28H 32H;FS
|
Wheels/Rear tire |
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 27.5x2.3"
|
Wheels/Inner tubes |
Standard 40mm PV 29/27.5x1.75-2.4
|
Wheels/Front wheel |
WH-TRAVERSE HD ALLOY 370 29 27.5 28H 32H;FS
|
Wheels/Front tire |
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
|
Suspension/Rear shock |
Ohlins TTX Coil shock, S2: 411lb, S3: 457lb, S4: 502lb, S5: 548lb, S6: 605lb
|
Suspension/Fork |
Ohlins RXF38 fork, 29", 160mm travel
|
Frameset/Seat binder |
Alloy, 38.6mm
|
E-bike/battery |
Specialized SL1-320, fully integrated, 320Wh
|
E-bike/Wiring harness |
Custom Specialized wiring harness
|
E-bike/UI remote |
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
|
E-bike/Motor |
New Specialized 1.2 SL Custom Rx Trail Tuned Motor
|
E-bike/Charger |
Custom charger, 48V System w/ SL system charger plug
|
Drivertain/Shift levers |
SRAM AXS POD Controller
|
Drivertain/Rear derailleur |
SRAM GX Eagle Transmission Derailleur
|
Drivertain/Crankset |
SRAM GX Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
|
Drivertain/Chainrings |
SRAM T-type ring, 32t
|
Drivertain/Chain |
SRAM GX Eagle Transmission Flattop Chain
|
Drivertain/Cassette |
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
|
Cockpit/Stem |
Raceface Aaffect R stem, 40mm length, 35mm bore
|
Cockpit/Seatpost |
New Bike Yoke Revive Max 3.0 dropper, 34.9mm
|
Cockpit/Saddle |
Specialized Bridge Mimic, hollow cromo rail
|
Cockpit/Handlebars |
Raceface Turbine alloy bar, S3-S6: 40mm rise, S2: 20mm rise
|
Cockpit/Grips |
Diety Lockjaw grips
|
Brakes/Rear brake |
Tektro DHR Evo brakes, w/200mm rotor
|
Brakes/Front brake |
Tektro DHR Evo brakes, w/220mm rotor
|
Accessories/Swat |
PROTECTOR, 3M MY22 LEVO SL GEN2 CHAINSTAY YOKE CARBON_ALLOY 0.36MM MYLAR SATIN/GLOSS
|
