Brand |
Specialized
|
Weight |
15.56 kg (34 lb, 4.9 oz)
|
Frameset/Frame |
M5 Alloy chassis and rear-end, Trail Geometry for 27.5 Front" and 26" rear wheels , horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
|
Item group |

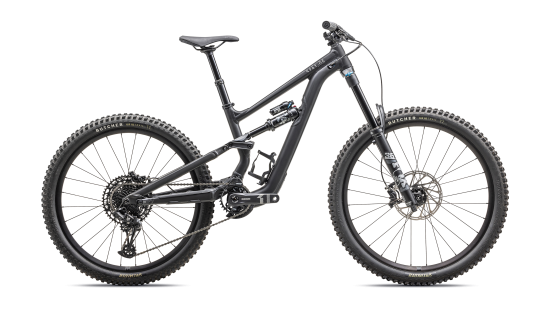

STATUS 170
|
Color |
Satin Obsidian / Dune White
|
Wheels/Spokes |
DT Swiss Industry
|
Wheels/Rims |
Roval Traverse, hookless alloy, 30mm inner width, tubeless ready. Front: 27.5", Rear: 26"
|
Wheels/Rear tire |
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3"
|
Wheels/Rear hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
|
Wheels/Inner tubes |
Standard, Presta valve
|
Wheels/Front tire |
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
|
Wheels/Front hub |
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
|
Suspension/Rear shock |
FOX FLOAT X Performance, Ride Dynamics Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm
|
Suspension/Fork |
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 170mm of travel
|
Frameset/Seat binder |
Alloy, 38.6mm
|
Drivertain/Shift levers |
SRAM NX Eagle, trigger, 12-speed
|
Drivertain/Rear derailleur |
SRAM NX Eagle, 12-speed
|
Drivertain/Crankset |
SRAM X1 Eagle, DUB,155mm, 55mm chainline, 30T
|
Drivertain/Chainrings |
Steel, 30T
|
Drivertain/Chain |
SRAM NX Eagle, 12-speed
|
Drivertain/Cassette |
SRAM NX Eagle, 12-speed, 11-50t
|
Cockpit/Stem |
Alloy Trail Stem, 35mm bar bore
|
Cockpit/Seatpost |
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm
|
Cockpit/Saddle |
Bridge Saddle, steel rails, 130mm
|
Cockpit/Handlebars |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 760mm width
|
Cockpit/Grips |
Deity Lockjaw
|
Brakes/Rear brake |
SRAM Code R, 4-piston caliper, hydraulic disc, 180mm
|
Brakes/Front brake |
SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
|
